The Climb page is the dashboard while climbing and also summarizes the climb.  Customize the items' visibility in the Show settings.


Tap to access the menu.


Tap to collapse a card.


Tap to expand a card.

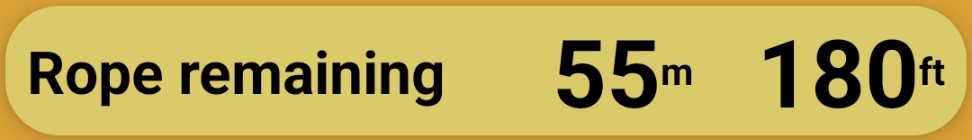

Rope remaining

It is only displayed when you specify the rope length in the Route settings.

Above ground

Straight up distance above starting point without consideration of slope.

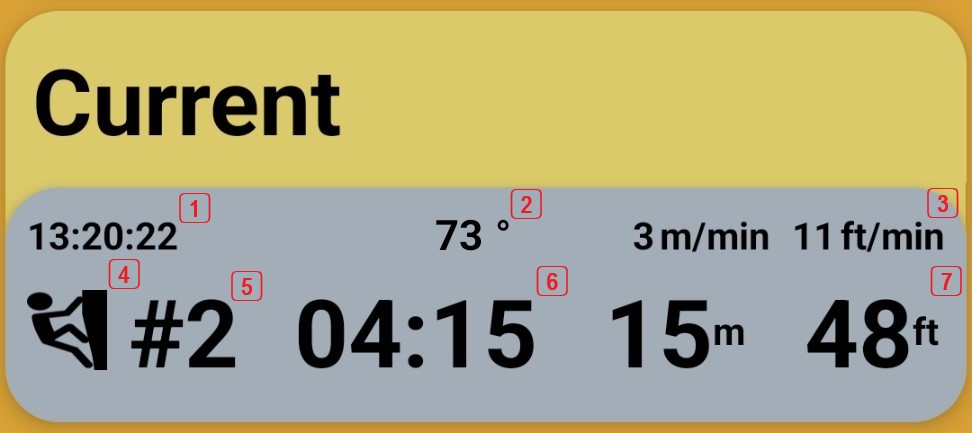

Current

Real-time information of the current pitch

  1. Current time
  2. Measured average slope
    Only available when there is a good GPS signal
  3. Average vertical speed
  4. Activity icon
  5. Activity count
  6. Elapsed time in [h:]mm:ss
  7. Vertical distance
    Calculated using the slope specified in the Route settings - not the measured slope

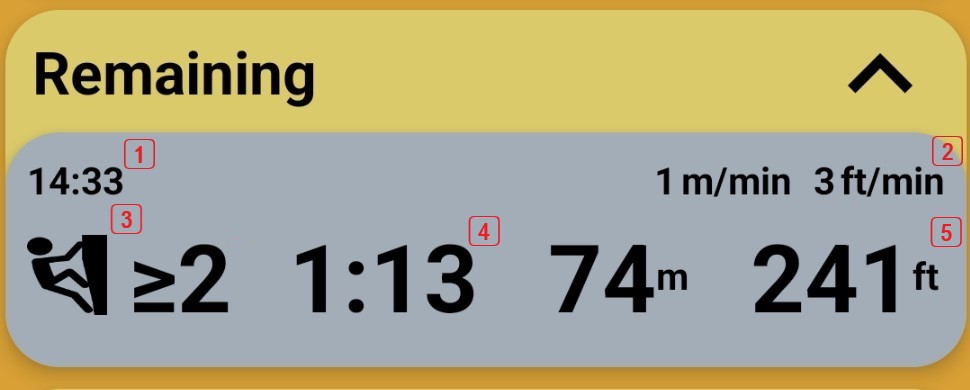

Remaining

Estimation of what remains to reach the top and return

  1. Time of arrival
  2. Average climbing/rappelling speed (including rests)
  3. Activity icon
  4. Minimum number of pitches/rappels
    Only displayed when you set the rope length in the Route settings
  5. Remaining climbing/rappelling duration in h:mm
  6. Remaining climbing/rappelling distance


Remaining - Climb is only displayed when you set the height in the Route settings.

Remaining - Rappel is only displayed after the first rappel.

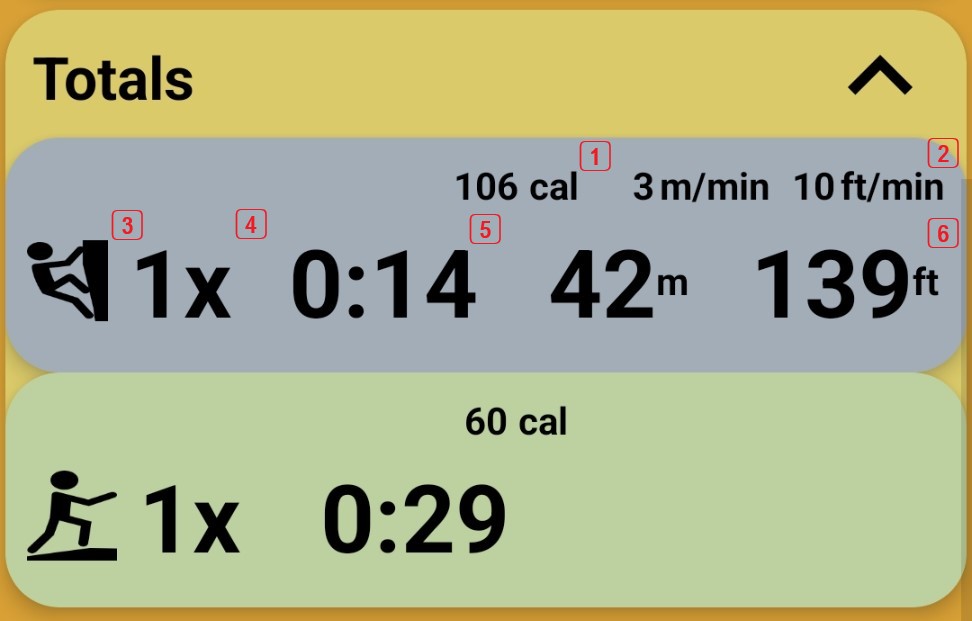

Totals

Totals for each activity

  1. Calories burned
  2. Average climbing/rappelling speed
  3. Activity icon
  4. Count
  5. Duration in h:mm
  6. Vertical distance


Totals - Rappel is only displayed after the first rappel.

Grand Total

Total of all activities

  1. Calories burned
  2. Average speed (including rests)
  3. Count
  4. Duration in h:mm
  5. Vertical distance
